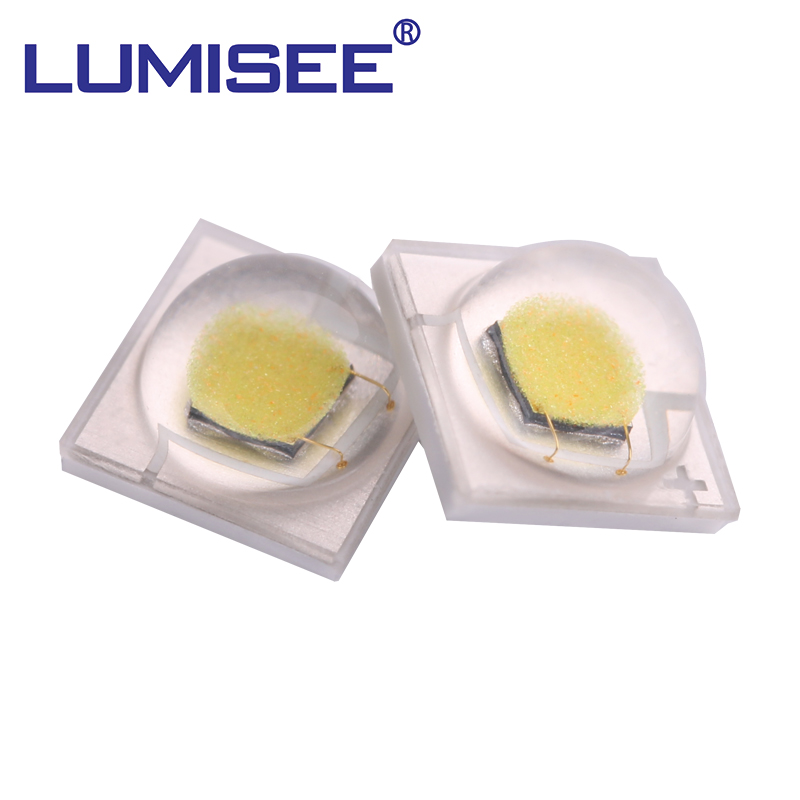

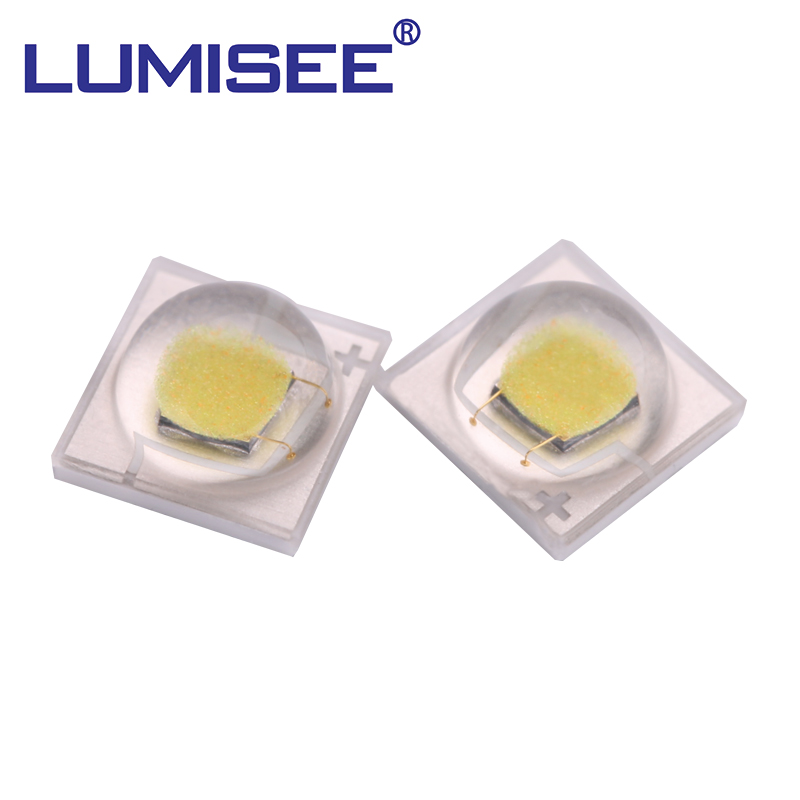

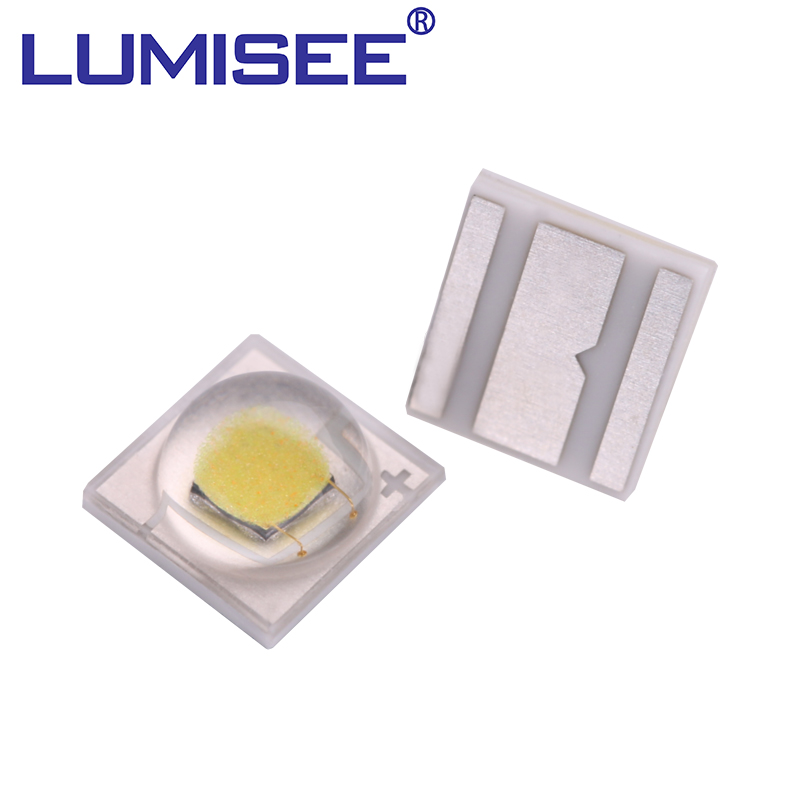

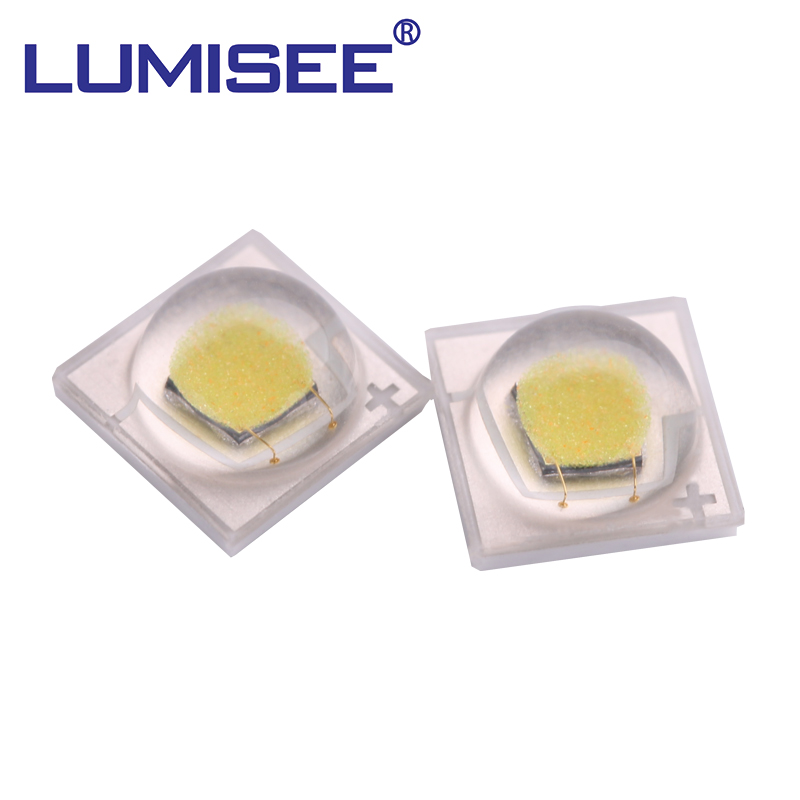

3535 White 3W Ra97
  • clicks:3036
  • Product Category: PRODUCTS WHITE COLOR
  • product description:3535 Full Spectrum 3W Ra97
  • Table 1. Product Introduce

    Description
    Features And Benefits
    KeyApplications
    Data Sheet Download

    • This surface-mount standard package

    3.45x3.45mm

    • The L35W series is designed for high flux output applications

    • up to 130 lm/W(@ 25 °C, 350 mA)

    • High current operation capability.

    • Designed for high current operation
    • Low thermal resistance
    • Pb-free reflow soldering application

    • Indoor lighting
    • Outdoor lighting
    • Automotive
    • Architectural lighting
    •Plant Factory
    •Flower Production
    • Home appliance
    >>Data Sheet

    Table 2. Product Selection Table

    Model No.

    CCT

    Color

    Min.

    Typ.

    Max.

    L35W-65811C1A-L JVV

    Cool White

    6020K

    6530K

    7040K

    L35W-57811C1A-L JVV

    Neutral White

    5310K

    5665K

    6020K

    L35W-50811C1A-L JVV

    Neutral White

    4745K

    5028K

    5311K

    L35W-40811C1A-L JVV

    Warm White

    3710K

    3985K

    4260K

    L35W-30811C1A-L JVV

    Warm White

    2870K

    3045K

    3220K

    L35W-27811C1A-L JVV

    Warm White

    2580K

    2725K

    2870K



    Table 3. Electro Optical Characteristics , IF=700mA Ta = 25℃, RH60%

    Color Temperature

    Color Rendering

    Typical Luminous Flux

    Min

    IF=700mA

    2725±145K

    97 (R1-R15≥90)

    180

    3045±175K

    97 (R1-R15≥90)

    200

    3985±275K

    97 (R1-R15≥90)

    220

    5028±283K

    97 (R1-R15≥90)

    220

    5665±355K

    97 (R1-R15≥90)

    220

    6530±510K

    97 (R1-R15≥90)

    220
