Table 1. Product Introduce
|
Description |
Features And Benefits |
Key Applications |
Data Sheet Download |
|

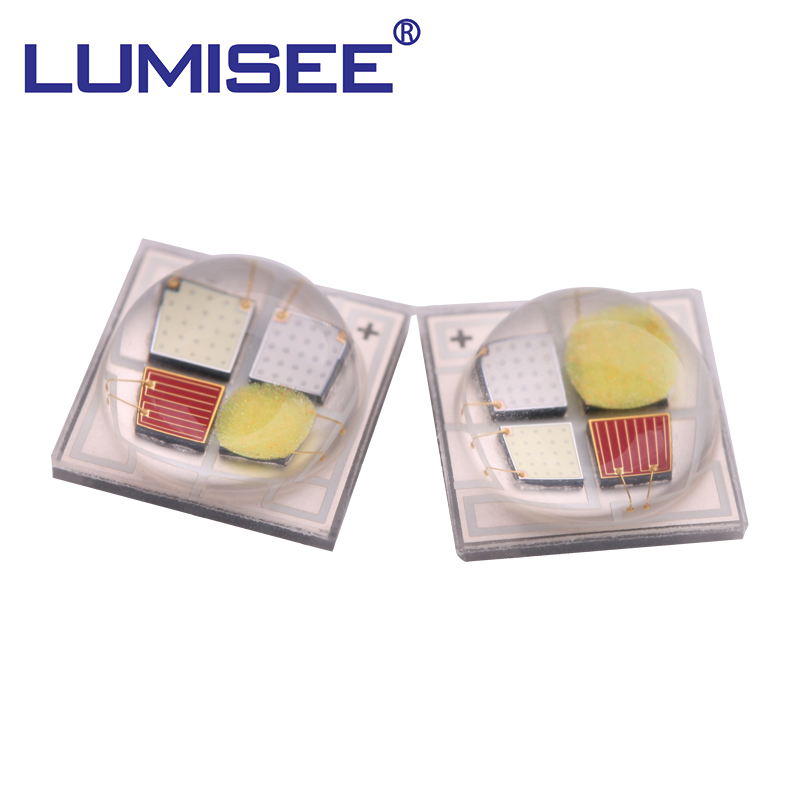

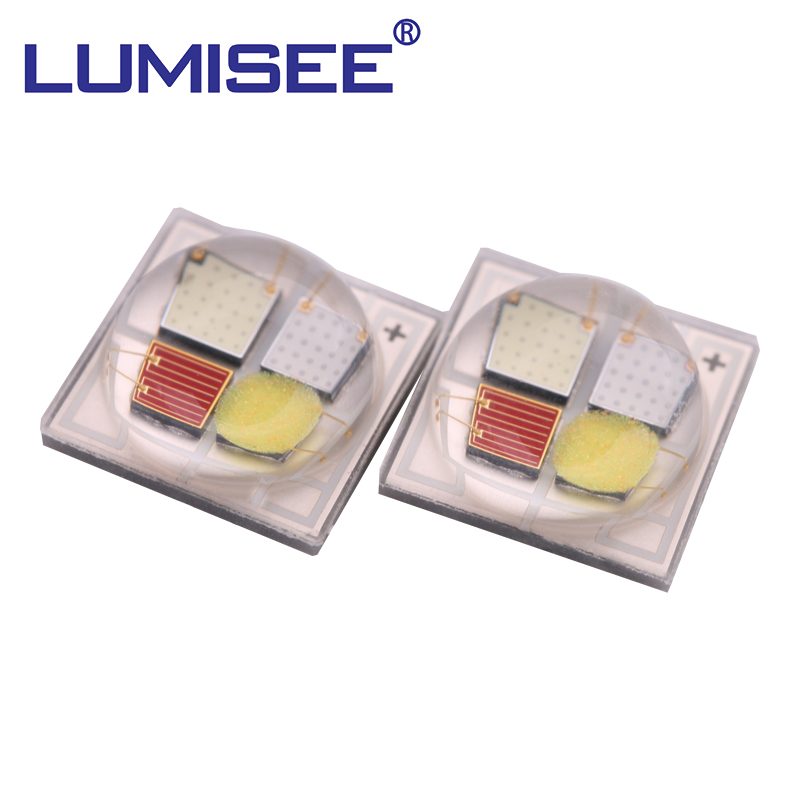

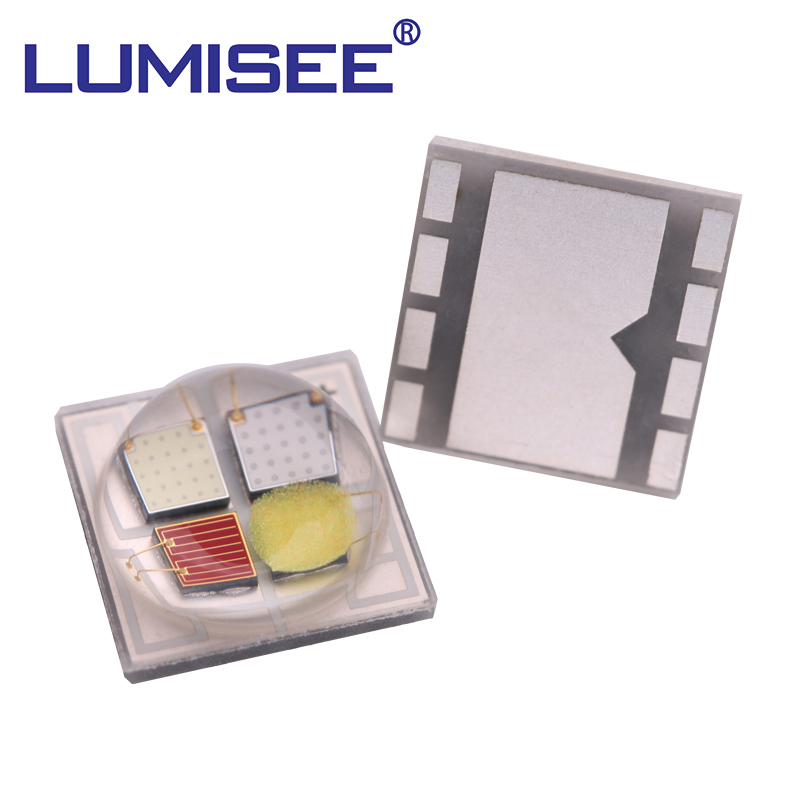

• This RGBW 4in1 surface-mount LED size in standard package: 5.0x5.0mm • High flux output, high current operation capability. • Low thermal resistance and high reliability characteristics. |
• Designed for high current operation • Low thermal resistance • RGBW 4in1 LED, High Power • Pb-free reflow soldering application |
• Indoor lighting • Outdoor lighting • Automotive • Architectural lighting • Industrial lighting • Portable torch |
>>Data Sheet |
Table 2. Product Selection Table
|
Model No. |
Wavelength/CCT (Typ.) |
|||
|
Red |
Green |
Blue |
White |
|
|
L5HC-RGB21814C2A-LSVV |
620-625 |
520-525 |
455-460 |
2100K |
|
L5HC-RGB27814C2A-LSVV |
620-625 |
520-525 |
455-460 |
2700K |
|
L5HC-RGB30814C2A-LSVV |
620-625 |
520-525 |
455-460 |
3000K |
|
L5HC-RGB40814C2A-LSVV |
620-625 |
520-525 |
455-460 |
4000K |
|
L5HC-RGB50814C2A-LSVV |
620-625 |
520-525 |
455-460 |
5000K |
|
L5HC-RGB57814C2A-LSVV |
620-625 |
520-525 |
455-460 |
5700K |
|
L5HC-RGB65814C2A-LSVV |
620-625 |
520-525 |
455-460 |
6500K |
Table 3. Electro Optical Characteristics , IF=700mA Ta
= 25℃, RH60%
Color/CCT
Wavelength
(nm)
Voltage (V)
Typical Luminous
Flux (lm)
Min.-Max.
Min.-Max.
Min.-Max.
Red
620-625
2.2-2.4
110-120
Green
520-525
3.0-3.2
220-240
Blue
455-460
3.0-3.2
35-40
2100-6500K Ra80
-
3.0-3.2
160-260
