Table 1. Product Introduce
|
Description |
Features And Benefits |
Key Applications |
Data Sheet Download |
|

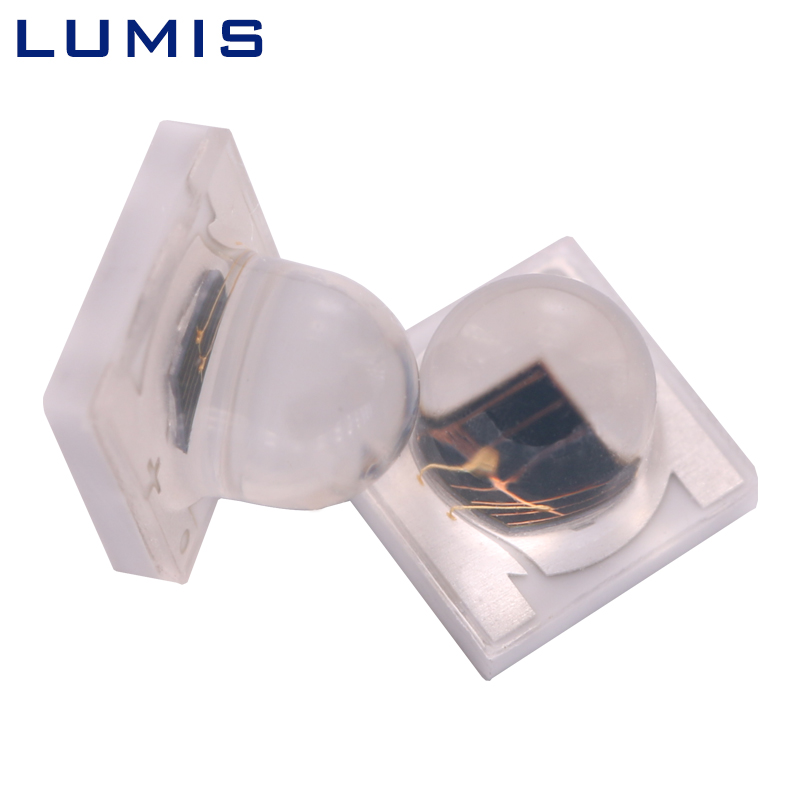

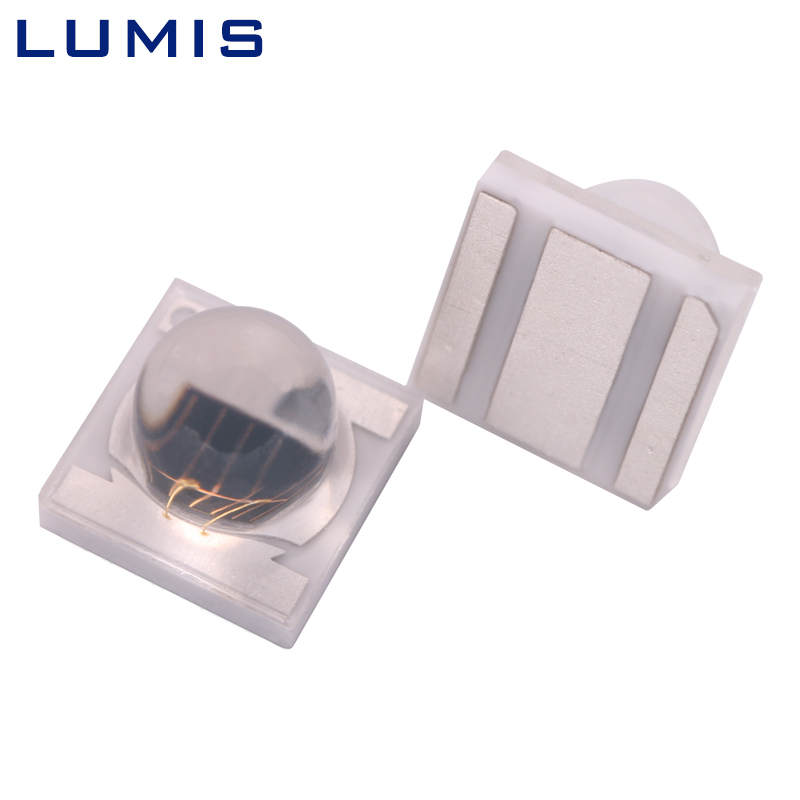

• This surface-mount standard package 3.45x3.45mm
• The L35I series is designed for high flux output applications • High current operation capability. |
• Designed for high current operation • Low thermal resistance • Pb-free reflow soldering application |
• Surveillance camera • IR data transmission • IR sensor |
>>Data Sheet |
Table 2. Product Selection Table
|
Parameter |
Peak Wavelength |
|||
|
Color |
Min. |
Typ. |
Max. |
|
|
L35I-80011C1C-LGUV |
IR |
800 |
805 |
810 |
|
L35I-85011C1C-LGUV |
IR |
845 |
850 |
855 |
|
L35I-94011C1C-LEUV |
IR |
940 |
945 |
955 |
Table 3. Electro Optical Characteristics , IF=350mA Ta
= 25℃, RH60%
|
Part Number |
Peak Wave length (nm) |
Forward Current |
Forward Voltage (V) |
Radiometric Power (mW) |
||||
|
Min. |
Max. |
Typ. |
Min. |
Max. |
Typ. |
|||
|
L35I-80011C1C-LGUV |
810 |
350 |
1.2 |
2.0 |
- |
300 |
400 |
330 |
|
L35I-85011C1C-LGUV |
850 |
350 |
1.2 |
2.0 |
- |
280 |
380 |
300 |
|
L35I-94011C1C-LEUV |
940 |
350 |
1.2 |
2.0 |
|
260 |
360 |
280 |
