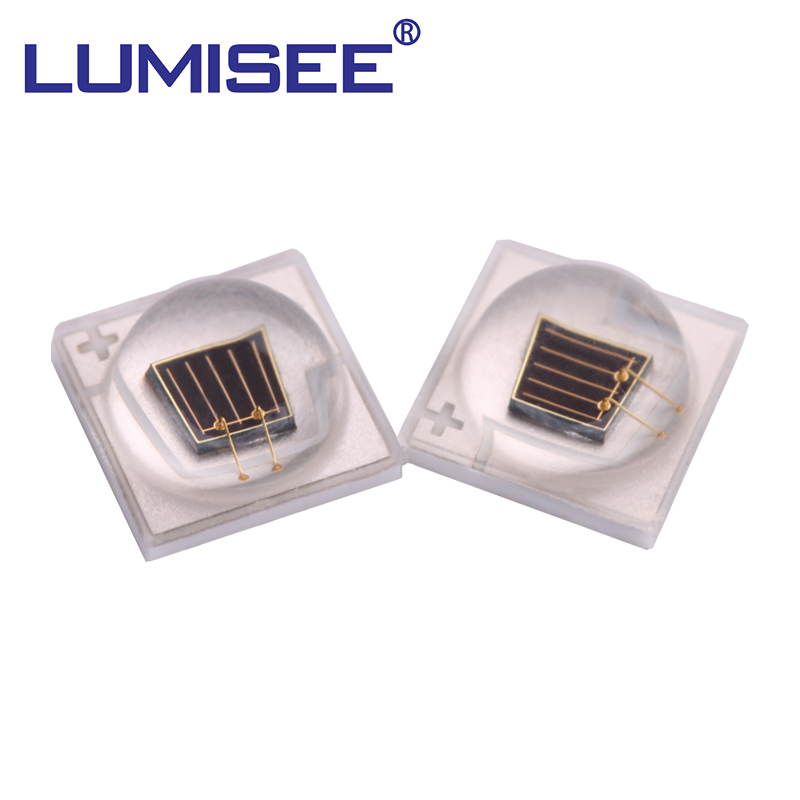

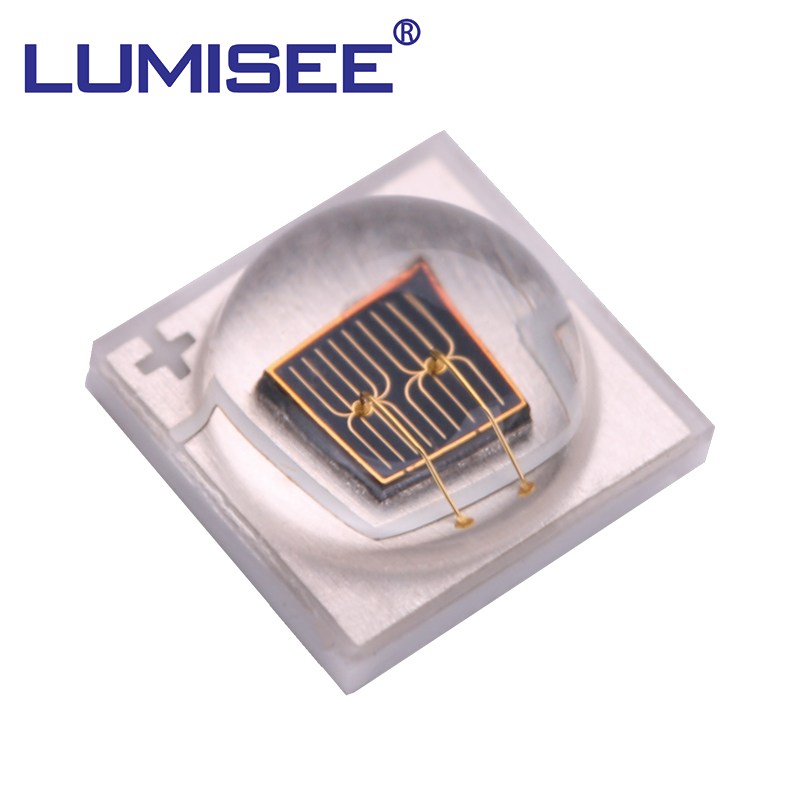

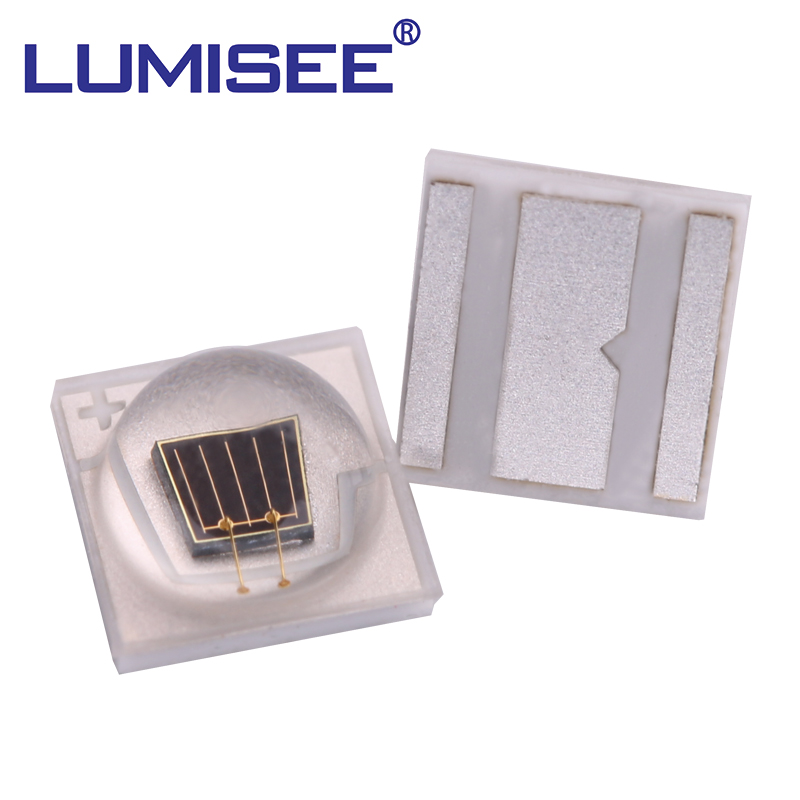

3535 IR 3W 120Deg
  • clicks:2441
  • Product Category: PRODUCTS SINGLE COLOR
  • product description:3535 IR 3W 120Deg
  • Table 1. Product Introduce

    Description
    Features And Benefits
    Key Applications
    Data Sheet Download

    • This surface-mount standard package

    3.45x3.45mm

    • The L35I series is designed for high flux output applications

    High current operation capability.

    • Designed for high current operation
    • Low thermal resistance
    • Pb-free reflow soldering application

    • Surveillance camera
    • IR data transmission
    • IR sensor

    >>Data Sheet


    Table 2. Product Selection Table

     Parameter

    Peak Wavelength

    Color

    Min.

    Typ.

    Max.

    L35I-80011C1A-LGUV

    IR

    800

    805

    810

    L35I-85011C1A-LGUV

    IR

    845

    850

    855

    L35I-94011C1A-LEUV

    IR

    940

    945

    955


    Table 3. Electro Optical Characteristics , IF=350mA Ta = 25℃, RH60%

    Part Number

    Peak Wave length (nm)

    Forward Current

    Forward Voltage (V)

    Radiometric Power (mW)

    Min.

    Max.

    Typ.

    Min.

    Max.

    Typ.

    L35I-80011C1A-LGUV

    810

    350

    1.2

    2.0

    -

    300

    400

    330

    L35I-85011C1A-LGUV

    850

    350

    1.2

    2.0

    -

    280

    380

    300

    L35I-94011C1A-LEUV

    940

    350

    1.2

    2.0


    260

    360

    280
