3535 RGB 3W
  • clicks:10376
  • Product Category: PRODUCTS FULL COLOR
  • product description:3535 RGB 3W
  • Table 1. Product Introduce

    Description
    Features And Benefits
    Key Applications
    Data Sheet Download

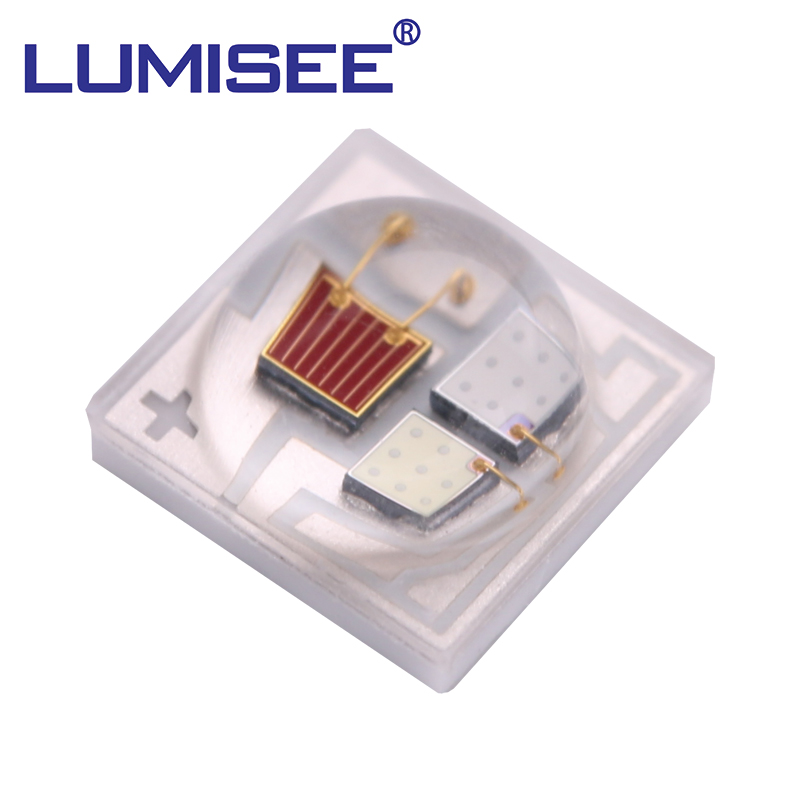

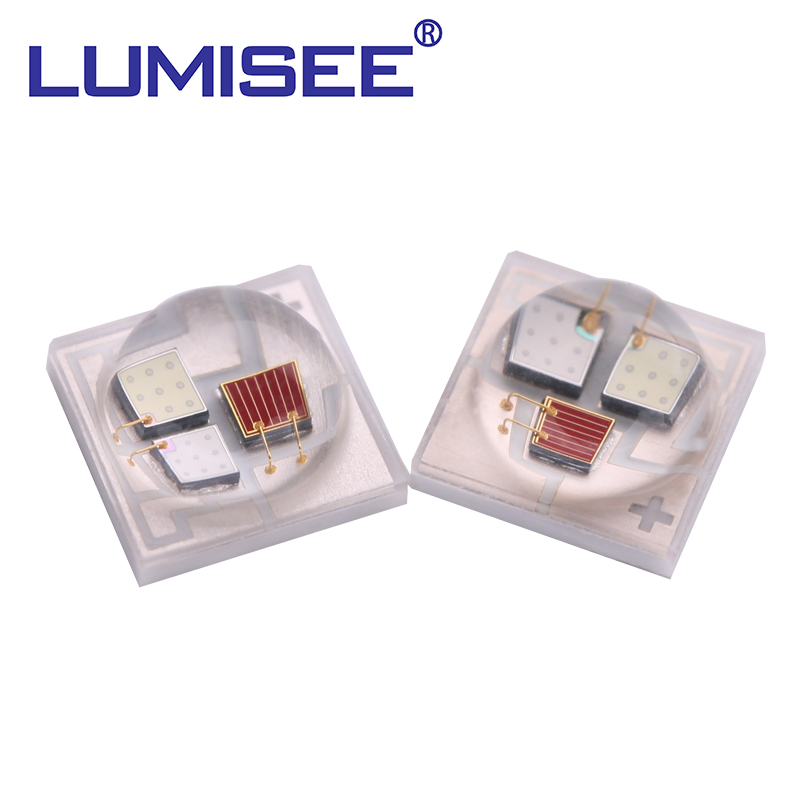

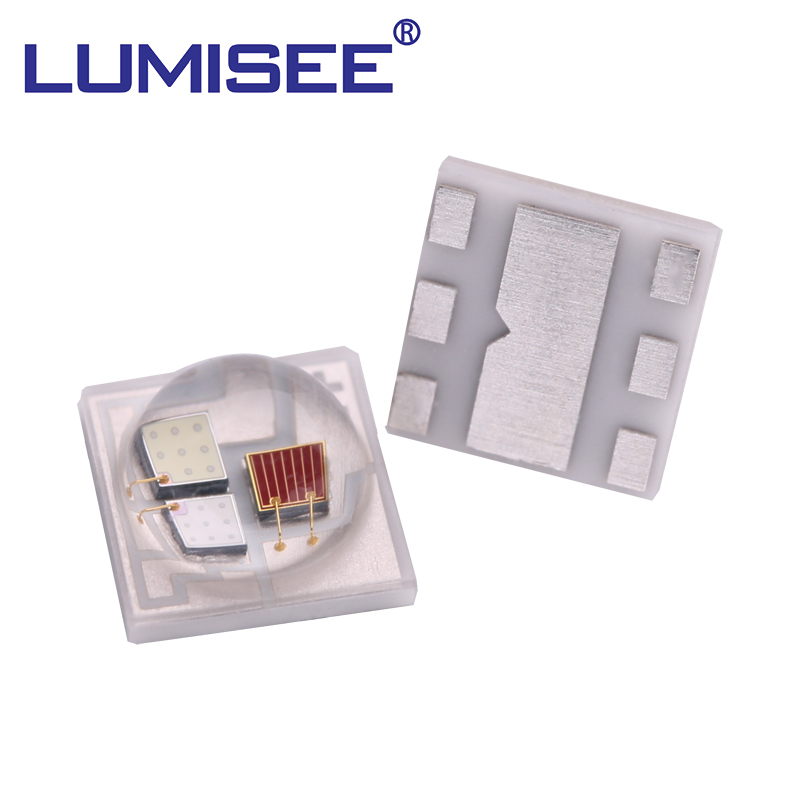

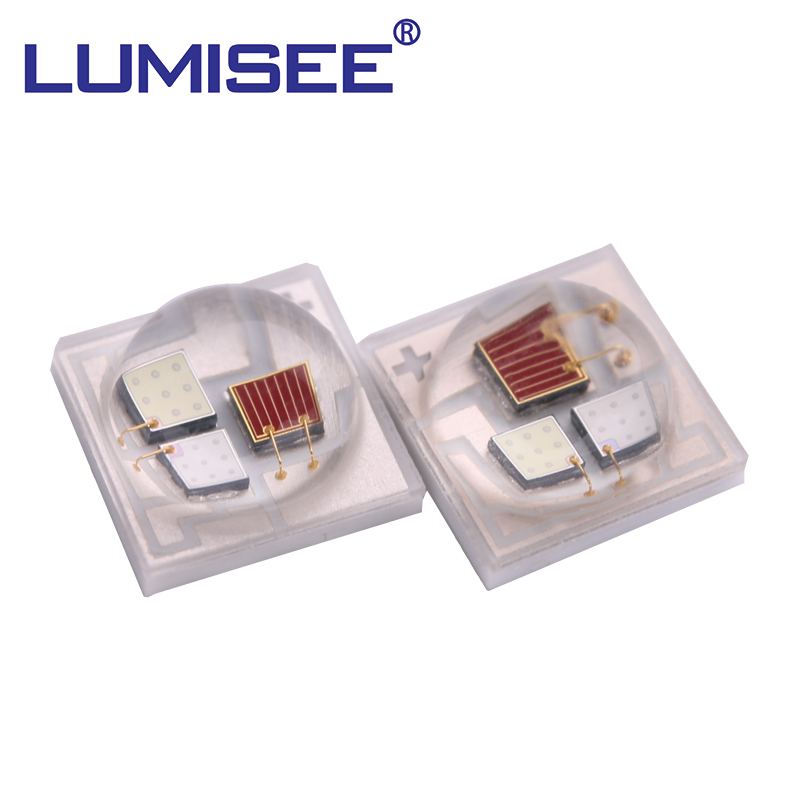

    • This RGB 3in1 surface-mount LED
    size in standard package: 3.5x3.5mm
    • High flux output, high current operation capability.
    • Low thermal resistance and high reliability characteristics.
    • Designed for high current operation
    • Low thermal resistance
    • RGB 3in1 LED, High Power
    • Pb-free reflow soldering application
    • Indoor lighting
    • Outdoor lighting
    • Automotive
    • Architectural lighting
    • Industrial lighting
    • Portable torch
    >>Data Sheet

    Table 2. Product Selection Table

     Parameter

    Peak Wavelength

    Color

    Min.

    Max.

    L35C-RGB13C1A-LSLV

    Red

    620

    625

    Green

    520

    525

    Blue

    455

    460



    Table 3. Electro Optical Characteristics , IF=350mA Ta = 25℃, RH60%


    Color/CCT

    Wavelength (nm)

    Voltage (V)

    Typical Luminous Flux (lm)

    Min.-Max.

    Min.-Max.

    Min.-Max.

    Red

    620-625

    2.2-2.4

    50-55

    Green

    520-525

    3.0-3.2

    100-110

    Blue

    455-460

    3.0-3.2

    20-22
