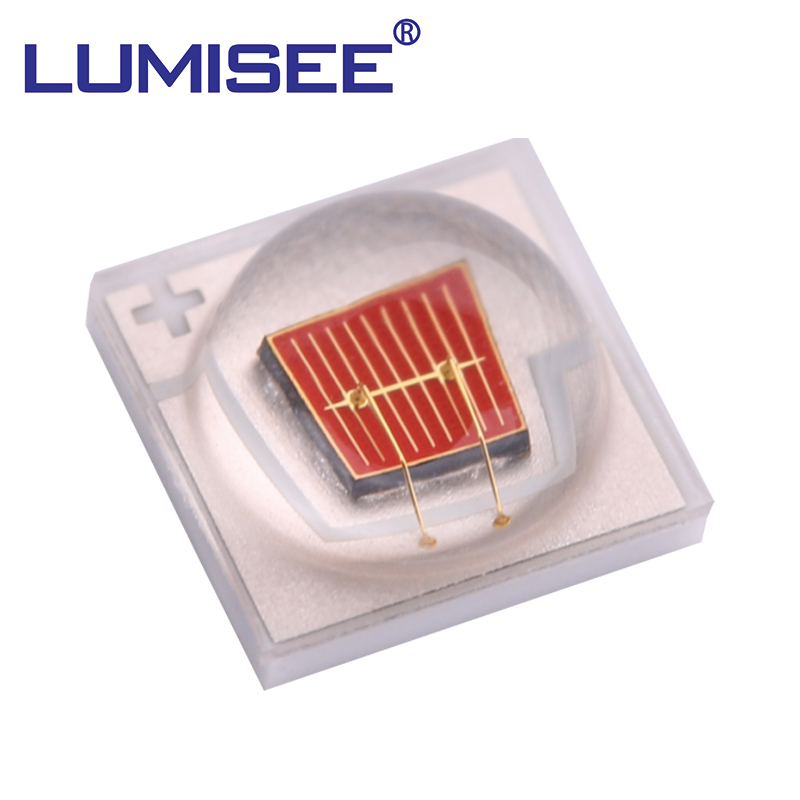

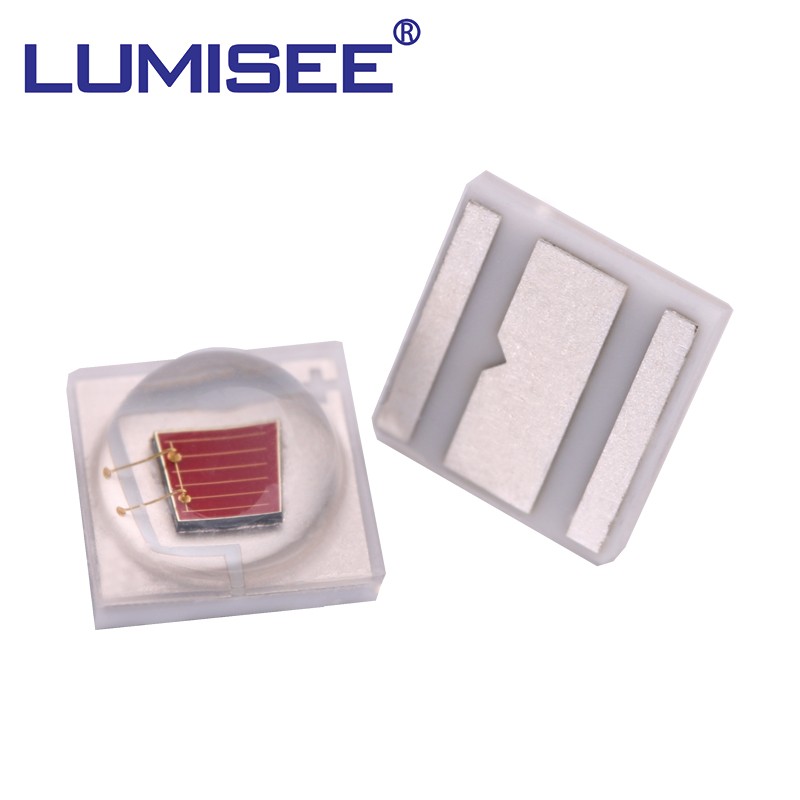

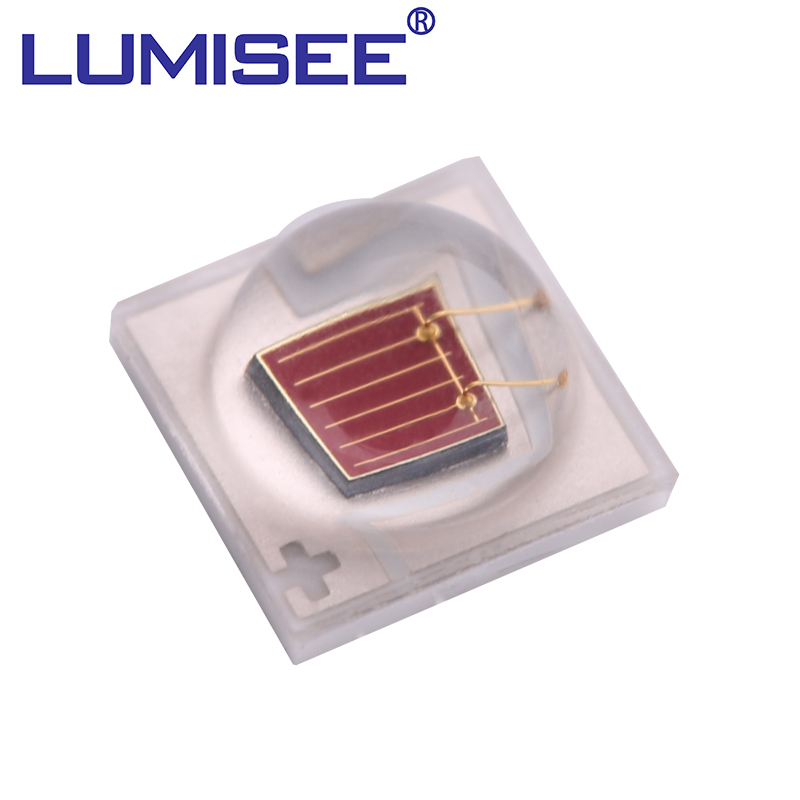

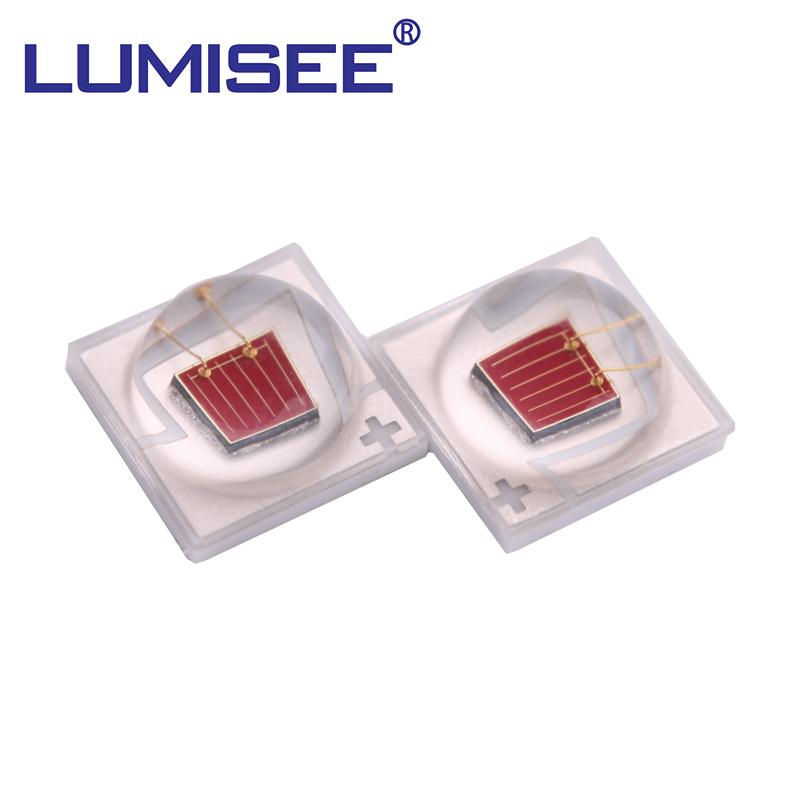

3535 R/G/B/Y 3W
  • clicks:10741
  • Product Category: PRODUCTS SINGLE COLOR
  • product description:3535 R/G/B/Y 3W
  • Table 1. Product Introduce

    Description
    Features And Benefits
    Key Applications
    Data Sheet Download

    • This surface-mount standard package

    3.45x3.45x2.15mm

    • The L35C series is designed for high flux output applications

    High current operation capability.

    • Designed for high current operation
    • Low thermal resistance
    • Pb-free reflow soldering application

    • Indoor lighting
    • Outdoor lighting
    • Automotive
    • Architectural lighting
    • Industrial lighting
    • Portable torch
    •Plant Factory
    •Flower Production
    •Tissue Culture
    •Refreshment

    >>Data Sheet


    Table 2. Product Selection Table


     Parameter

    Wavelength (5nm/Bin)

    Color

    Min.

    Max.

    L35C-43011C1A-LGVV

    Royal Blue

    430

    435

    L35C-44011C1A-LOVV

    Royal Blue

    440

    445

    L35C-45011C1A-LJVV

    Blue

    450

    455

    L35C-46011C1A-LSSV

    Blue

    460

    465

    L35C-47011C1A-LXVV

    Light Blue

    470

    475

    L35C-48011C1A-LGVL

    Light Blue

    480

    485

    L35C-49511C1A-LXVV

    Cyan

    495

    500

    L35C-52011C1A-LSSV

    Green

    520

    525

    L35C-56011C1A-LXVV

    Kelly

    560

    565

    L35C-59011C1A-LGUV

    Yellow

    590

    595

    L35C-60011C1A-LGUV

    Orange

    600

    605

    L35C-61011C1A-LGUV

    Orange

    610

    615

    L35C-62011C1A-LSUV

    Red

    620

    625

    L35C-65511C1A-LOVV

    Crimson

    655

    660

    L35C-66011C1A-LGUV Crimson 660 665

    L35C-73011C1A-LSUV

    IR

    730

    735

    L35C-74011C1A-LGUV

    IR

    740

    745


    Table 3. Electro Optical Characteristics , IF=700mA Ta = 25℃, RH60%

    Color

    Part Number

    Wavelength (nm)

    Forward Current

    Forward Voltage (V)

    Luminous Flux (lm) or Radiometric Power (mW)

    Min.

    Max.

    Min.

    Max.

    Royal Blue

    L35C-43011C1A-LGVV

    430-435

    700

    3.2

    3.4

    9lm

    10lm

    Royal Blue

    L35C-44011C1A-LOVV

    440-445

    700

    3.0

    3.2

    22lm

    24lm

    Blue

    L35C-45011C1A-LJVV

    450-455

    700

    3.0

    3.2

    35lm

    40lm

    Blue

    L35C-46011C1A-LSSV

    460-465

    700

    3.0

    3.2

    48lm

    52lm

    Light Blue

    L35C-47011C1A-LXVV

    470-475

    700

    3.0

    3.2

    65lm

    70lm

    Light Blue

    L35C-48011C1A-LGVL

    480-485

    700

    3.4

    3.6

    80lm

    90lm

    Cyan

    L35C-49511C1A-LXVV

    495-500

    700

    2.8

    3.0

    150lm

    160lm

    Green

    L35C-52011C1A-LSSV

    520-525

    700

    2.8

    3.0

    220lm

    240lm

    Kelly

    L35C-56011C1A-LXVV

    560-565

    700

    2.8

    3.0

    140lm

    150lm

    Yellow

    L35C-59011C1A-LGUV

    590-595

    700

    2.2

    2.4

    110lm

    120lm

    Orange

    L35C-60011C1A-LGUV

    600-605

    700

    2.2

    2.4

    130lm

    140lm

    Orange

    L35C-61011C1A-LGUV

    610-615

    700

    2.2

    2.4

    130lm

    140lm

    Red

    L35C-62011C1A-LSUV

    620-625

    700

    2.2

    2.4

    100lm

    110lm

    Crimson

    L35C-65511C1A-LOVV

    655-660

    700

    2.2

    2.4

    60lm

    65lm

    Crimson L35C-66011C1A-LGUV 660-665 700 2.2 2.4 50lm 55lm

    IR

    L35C-73011C1A-LSUV

    730-735

    700

    2.2

    2.4

    650mW

    700mW

    IR

    L35C-74011C1A-LGUV

    740-745

    700

    2.2

    2.4

    600mW

    650mW
