Table 1. Product Introduce
|
Description |
Features And Benefits |
Key Applications |
Data Sheet Download |
|

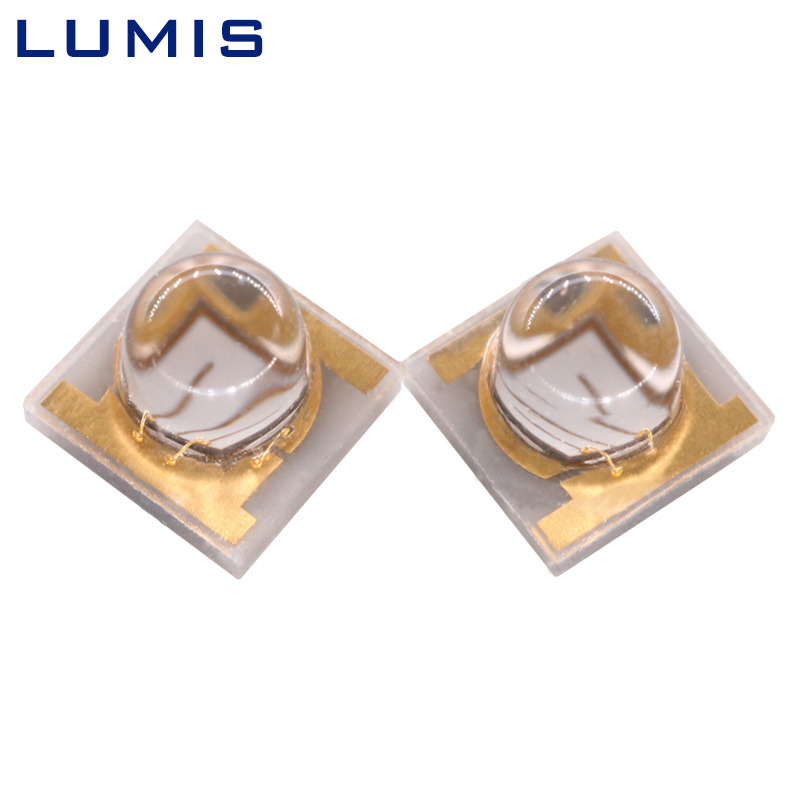

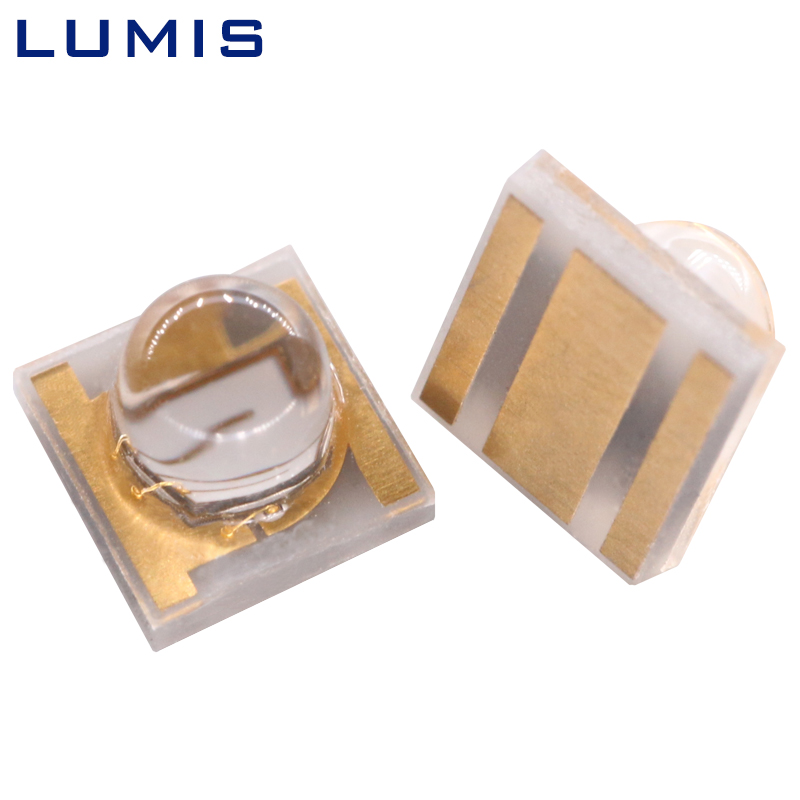

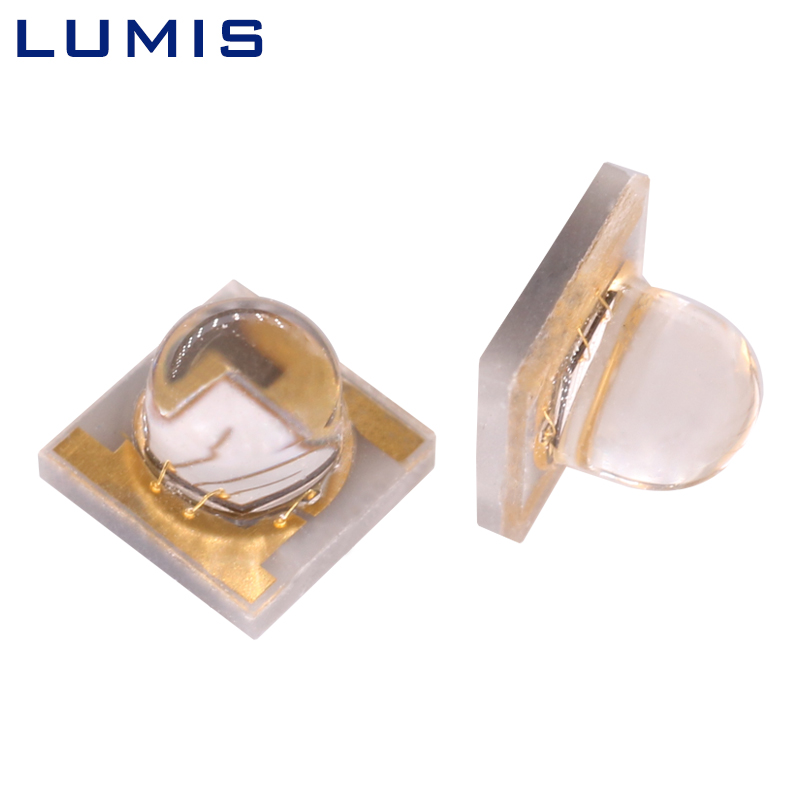

• This surface-mount standard package 3.45x3.45mm
• The L35U series is designed for high flux output applications • High current operation capability. |
• Designed for high current operation • Low thermal resistance • Pb-free reflow soldering application |
• Ultraviolet Disinfection • UV Curing • UV Ink Curing • Printing • Moth-killing lamp • Medical Treatment and Health •General Use |
>>Data Sheet |
Table 2. Product Selection Table
|
Parameter |
Peak Wavelength (5nm/Bin) |
|||
|
Color |
Min. |
Typ. |
Max. |
|
|
L35U-36511C2C-LLVV |
UV |
365 |
- |
370 |
|
L35U-38011C2C-LGVV |
UV |
380 |
- |
385 |
|
L35U-38511C2C-LGVV |
UV |
385 |
- |
390 |
|
L35U-39011C2C-LGVV |
UV |
390 |
- |
395 |
|
L35U-39511C2C-LGVV |
UV |
395 |
- |
400 |
|
L35U-40011C2C-LGVV |
UV |
400 |
- |
405 |
|
L35U-40511C2C-LGVV |
UV |
405 |
- |
410 |
|
L35U-41011C2C-LGVV |
UV |
410 |
- |
415 |
|
L35U-41511C2C-LGVV |
UV |
415 |
- |
420 |
|
L35U-42011C2C-LGVV |
UV |
420 |
- |
425 |
Table 3. Electro Optical Characteristics , IF=500mA Ta
= 25℃, RH60%
|
Part Number |
Peak Wave length (nm) |
Forward Current |
Forward Voltage (V) |
Radiometric Power (mW) |
||||
|
Min. |
Max. |
Typ. |
Min. |
Max. |
Typ. |
|||
|
L35U-36511C2C |
365-370 |
500 |
3.2 |
3.8 |
- |
1110 |
1310 |
- |
|
L35U-38011C2C |
380-385 |
500 |
3.2 |
3.8 |
- |
1110 |
1310 |
- |
|
L35U-38511C2C |
385-390 |
|||||||
|
L35U-39011C2C |
390-395 |
500 |
3.2 |
3.8 |
- |
1110 |
1310 |
- |
|
L35U-39511C2C |
395-400 |
|||||||
|
L35U-40011C2C |
400-405 |
500 |
3.2 |
3.8 |
- |
1110 |
1310 |
- |
|
L35U-40511C2C |
405-410 |
|||||||
|
L35U-41011C2C |
410-415 |
500 |
3.2 |
3.8 |
- |
1110 |
1310 |
- |
|
L35U-41511C2C |
415-420 |
|||||||
|
L35U-42011C2C |
420-425 |
500 |
3.2 |
3.8 |
- |
1110 |
1310 |
|
