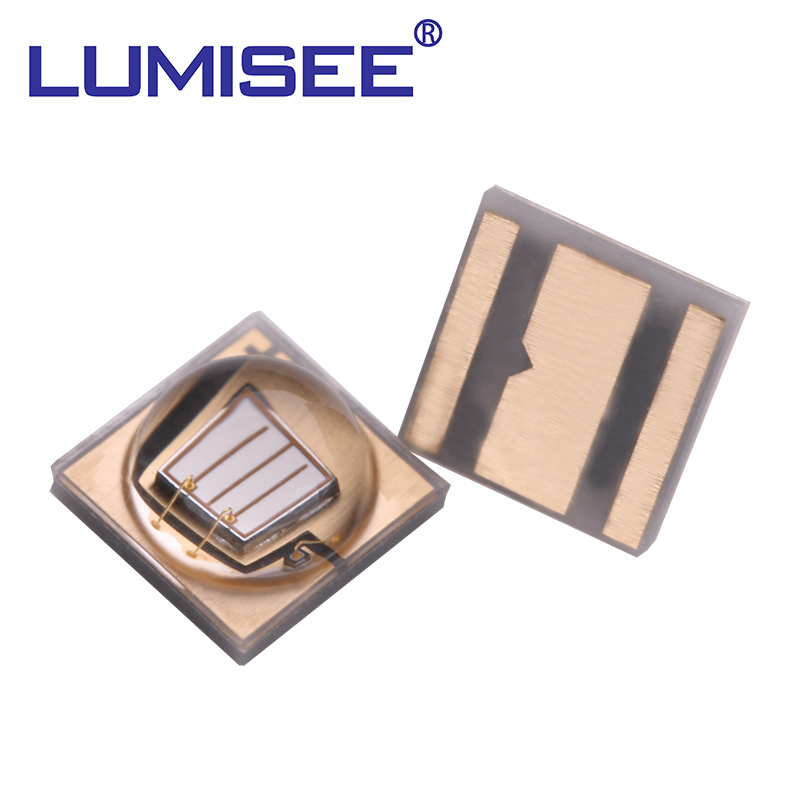

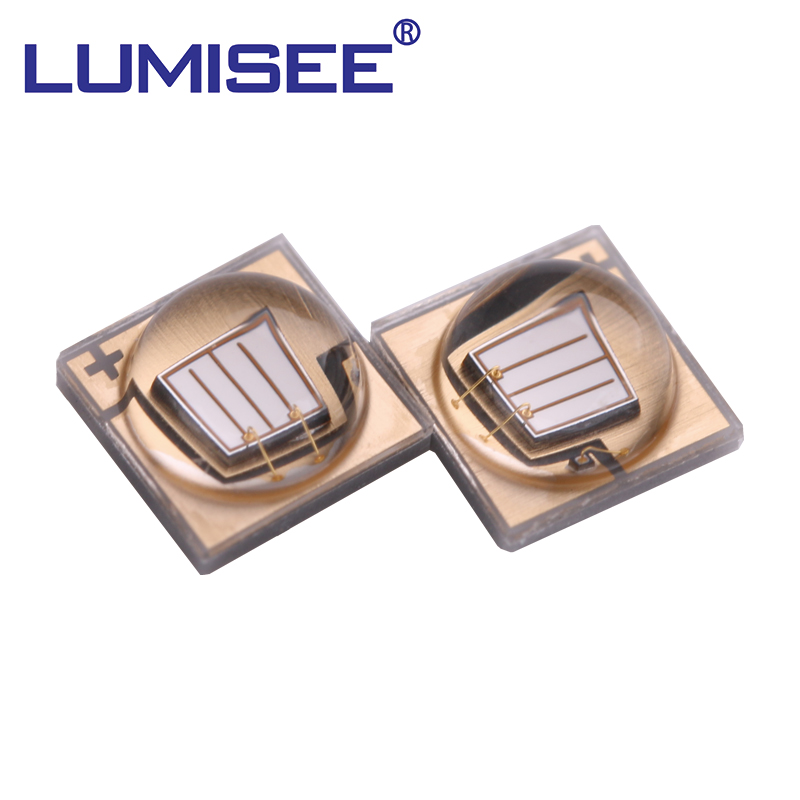

3535 UVA 3W 120Deg
  • clicks:549
  • Product Category: PRODUCTS SINGLE COLOR
  • product description:3535 UVA 3W 120Deg
  • Table 1. Product Introduce

    Description
    Features And Benefits
    Key Applications
    Data Sheet Download

    • This surface-mount standard package

    3.45x3.45mm

    • The L35U series is designed for high flux output applications

    High current operation capability.

    • Designed for high current operation
    • Low thermal resistance
    • Pb-free reflow soldering application

    • Ultraviolet Disinfection
    • UV Curing
    • UV Ink Curing
    • Printing
    • Moth-killing lamp
    • Medical Treatment and Health
    •General Use

    >>Data Sheet


    Table 2. Product Selection Table

     Parameter

    Peak Wavelength (5nm/Bin)

    Color

    Min.

    Typ.

    Max.

    L35U-36511C2A-LLVV

    UV

    365

    -

    370

    L35U-38011C2A-LGVV

    UV

    380

    -

    385

    L35U-38511C2A-LGVV

    UV

    385

    -

    390

    L35U-39011C2A-LGVV

    UV

    390

    -

    395

    L35U-39511C2A-LGVV

    UV

    395

    -

    400

    L35U-40011C2A-LGVV

    UV

    400

    -

    405

    L35U-40511C2A-LGVV

    UV

    405

    -

    410

    L35U-41011C2A-LGVV

    UV

    410

    -

    415

    L35U-41511C2A-LGVV

    UV

    415

    -

    420

    L35U-42011C2A-LGVV

    UV

    420

    -

    425


    Table 3. Electro Optical Characteristics , IF=500mA Ta = 25℃, RH60%

    Part Number

    Peak Wave length (nm)

    Forward Current

    Forward Voltage (V)

    Radiometric Power (mW)

    Min.

    Max.

    Typ.

    Min.

    Max.

    Typ.

    L35U-36511C2C

    365-370

    500

    3.2

    3.8

    -

    1110

    1310

    -

    L35U-38011C2C

    380-385

    500

    3.2

    3.8

    -

    1110

    1310

    -

    L35U-38511C2C

    385-390

    L35U-39011C2C

    390-395

    500

    3.2

    3.8

    -

    1110

    1310

    -

    L35U-39511C2C

    395-400

    L35U-40011C2C

    400-405

    500

    3.2

    3.8

    -

    1110

    1310

    -

    L35U-40511C2C

    405-410

    L35U-41011C2C

    410-415

    500

    3.2

    3.8

    -

    1110

    1310

    -

    L35U-41511C2C

    415-420

    L35U-42011C2C

    420-425

    500

    3.2

    3.8

    -

    1110

    1310
